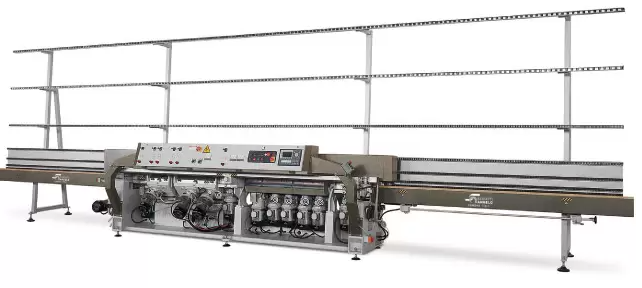

Schiatti Angelo FPS-50M 3/55 mm – Advanced Flat Edge Processing with Variable Angle Technology

The Schiatti Angelo FPS-50M 3/55 mm is an advanced straight-line edging machine developed for professional glass processors requiring maximum flexibility, precision and production capacity. Designed to process glass thicknesses from 3 mm up to 55 mm, the machine performs precision grinding and polishing of flat edges while allowing variable-angle arris processing from 0° to 45°, making it suitable for a wide variety of architectural and decorative glass applications.

The FPS-50M is particularly suited for manufacturers producing:

Architectural glass;
Structural glazing;
Thick laminated glass;
Furniture glass;
Glass staircases;
Glass partitions;
Shopfronts;
Interior design glass;
Industrial glass components.
Main Advantages
Processes glass thicknesses from 3 to 55 mm;
Variable angle edge processing from 0° to 45°;
High-quality flat edge grinding and polishing;
Automatic PLC-controlled operation;
Independent diamond wheel adjustment;
Automatic polishing wheel positioning;
Heavy-duty conveyor for large glass panels;
Closed-loop water cooling system;
Built for continuous industrial production;
Reliable Italian engineering and long service life.

The Schiatti Angelo FPS-50M 3/55 mm is the ideal solution for glass manufacturers looking for a premium straight-line edging machine capable of processing thick glass with exceptional precision, flexibility and production efficiency.

The FPS-50M combines Schiatti Angelo's renowned Italian engineering with a heavy-duty mechanical structure capable of handling large and thick glass sheets up to 1,800 kg. The robust conveyor system, equipped with rubber pads mounted on chains and precision guide rails, ensures stable glass transport, high accuracy and long-term reliability even under continuous industrial production.

A PLC-based control system manages the main operating parameters, including glass thickness adjustment, conveyor speed and polishing operations. Automatic polishing wheel adjustment, independent diamond wheel regulation and double-speed polishing motors guarantee outstanding edge quality while minimizing operator intervention. The machine also supports both liquid and synthetic cerium oxide polishing compounds for superior finishing performance.
